Dual Heads MSR Magnetic Card Reader For Shopping Mall / Supermarket

Basic Information
Place of Origin: China
Brand Name: PROVA
Certification: Null
Model Number: F780
Minimum Order Quantity: 1 unit, sample accepted
Price: USD20
Packaging Details: 50 units / Carton,11.5kgs/carton
Delivery Time: 0-4 weeks according to quantities
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3000+ Units / month
Contact Now
Detail Information
Name: Dual-Heads Magnetic Card Reader Function: Read Magnetic Card 1/2/3 Tracks
Interface: USB (Keyboard Or HID Mode) Color: Black

Product Description

Product Name:   Dual-Heads Magnetic Card reader / Magnetic Slot Card Reader / Magnetic Stripe Reader

Model: F780

Dual Heads MSR Magnetic Card Reader For Shopping Mall / SupermarketDual Heads MSR Magnetic Card Reader For Shopping Mall / SupermarketDual Heads MSR Magnetic Card Reader For Shopping Mall / Supermarket

Description

F780 Dual face magnetic card reader is developed under 32bit Cortex-M3 platform with working frequency 72MHz. It can read and decode the magnetic card , credit card compatible with ISO7811 standard rapidly and accurately.

F780 works under RS232 interface or USB interface. With the powerful setting utility , users can set the output format flexibly and expediently. F780 can be used in shopping mall , supermarket ,CVS , as well as being set into Kiosk terminals such as ATM, self-service terminals.



Technical Features:

  • Power supply:DC 5V/±10%
  • Power Mode:

1) From RS232 of some terminals

2) From USB port.

3) From external power adapter.

  • Electric Current:stand by status :≤80mA . Crest value under working:≤100mA
  • Interface :RS232 or USB
  • Magnetic Card reading features:

Support dual face swipe with two magnetic heads, support dual direction swipe.

Support ISO/IEC7811/AAMVA standard.

Card swiping speed:10cm/s~120cm/s.

Swiping lifetime: ≥600,000 passes.

Track Track 1 Track 2 Track 3
Recording density 210 BPI 75 BPI 210 BPI
Capacity

79 characters

(7 bit code)

40 characters

(5 bit code)

107 characters

(5 bit code)


  • Working Environment:Temperature -10~50℃, Humidity 10%~90%.
  • Support USB1.1/USB2.0 standard.
  • Dimension(L×W×H):116mm×36 mm×40mm
  • Color: Black
  • Cable Length: 1.5m

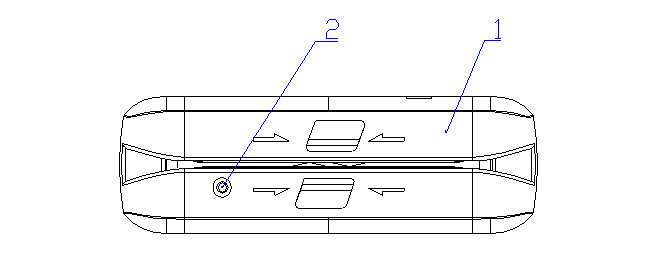

Structure Features:

Dual Heads MSR Magnetic Card Reader For Shopping Mall / Supermarket

1. Main housing

2. Status LED (blue and red)





DIP SWITCH Definition:

There is a DIP Switch on the main board. The settings definition is following:



SW1 SW2 Interface Mode
ON ON USB Virtual COM Port
ON OFF USB HID Mode
OFF ON RS232 Mode (115200,8,N,1)
OFF OFF RS232 Mode (9600,8,N,1)



SW4 Status
ON F/W updating mode
OFF Working mode



SW3 has no definition.





Setting Utility:



Dual Heads MSR Magnetic Card Reader For Shopping Mall / Supermarket
