OEM Brand Reader Writer Encoder , Msrx Card Reader Program Software For Windows

Basic Information
Place of Origin: China
Brand Name: OEM / Customize
Certification: ROHS
Model Number: MSRC206U
Minimum Order Quantity: 1 unit, sample avaliable
Price: By inquiry
Packaging Details: 20 units / Carton
Delivery Time: 0-4 weeks according to quantities
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000+ units / month
Detail Information
Name: Magnetic Stripe Card Reader & Encoder / Magnetic Stripe Card Reader & Writer Interface: USB Virtual Com
Support Card: Magnetic Stripe Card / Passbook Read & Write Color: Black
Power Supply: External 24V/2.5A Compatible Model: MSR206 Command Set
High Light:

magnetic card reader writer encoder

,

msr605x magnetic stripe card reader writer encoder


Product Description

Product: USB Magnetic Stripe Card Reader & Encoder / Magnetic Stripe Card Reader & Writer - MSRC206U

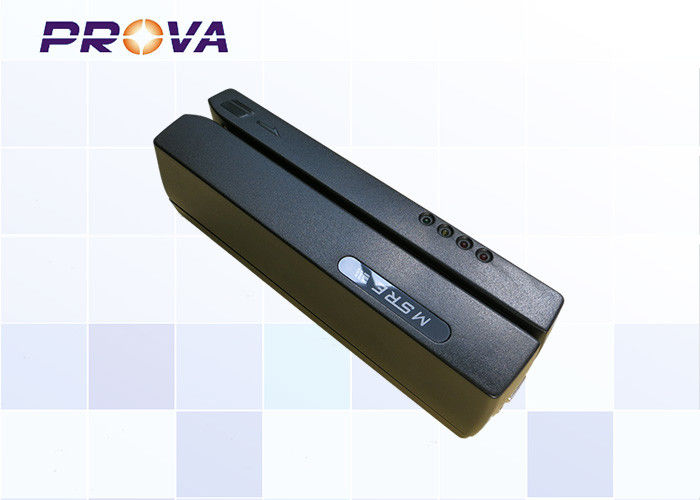

  OEM Brand Reader Writer Encoder , Msrx Card Reader Program Software For Windows 0

Model: MSRC206U



   1. General

Manual Swipe Magnetic Card Reader/Writer MSRC206 Series is designed to offer a card reading/writing Solution for ISO 7811-6 formats.

It reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data simultaneously.

Provides a USB- RS232 interface to communicate with a host system or other terminal computers.



2. Multiple Applications

Manual Swipe Magnetic Card Reader/Writer MSRC206 Series is ideal for credit card verification and various card related applications.



3. Features:

  •  Reading/writing magnetic stripe cards complies with ISO 7811 / 1~6 formats
  •  Manual Swipe to read and/or write cards with PC standard USB interface , Need FTDI USB-RS232 driver
  • Read/Write High and Low Coercive force of magnetic stripe (300~4000Oe)
  • 5~35ips operational swipe speed of writing data
  • 5~55ips operational swipe speed of reading data
  • +24VDC+/-10%, 2.0A Max., external power adapter attached
  • Writing and verifying data on single, dual, or triple track in one swipe
  • Programming software included for various read/write applications
  • Program software for Windows xp/7/8.1/10 , Linux, etc.
  • High/Low Coercivity encoding circuitry selectable on screen
  • Programmable leading bit, raw data, DMV/AAMVA, and user defined format
  • Compact size with dimensions of 210(L) x 62(W) x65(H) mm



4. MSRC206 Specifications



Electrical

Operating voltage: +24VDC +/- 5%

Consumption: Typical 350mA Max. and 600mA plus for each writing track

Power Supply: External Power Adapter 24 V/2.2A

Communication: Standard RS232 signal levels

Ripple: 50mVp-p or less

Dielectric strength: 500VDC for 1 minute



Mechanical

Dimension (L*W*H):210*62*65 MM

Weight: Approx. 1.5kg

Swipe: Manual, single direction



Inter connection

Cable: 1.5M, USB

Default: Baud rate 9600, 8 bit/character, no parity, 1 stop bit



Environmental

Operation: 0° to 50° C, 15 to 85% humidity

Storage: -30° to 70° C, 10 to 90% humidity

Read card: Track 1 Track 2 Track 3

Bit density: 210 bpi 75/210 bpi 210 bpi

Coercive force: Read/Write 300-4000 Oe Mag. card

Card thickness: 0.76-1.2mm



Performance

Read speed: STD card Jitter +/- 15% Amp. 60%

5~55ips 5~50ips 5~50ips

Write speed: 5~30ips

Write jitter: Interval < +/-10%, Sub-interval < +/-12%

Head life: Min. 500K swipes for both read/write head
