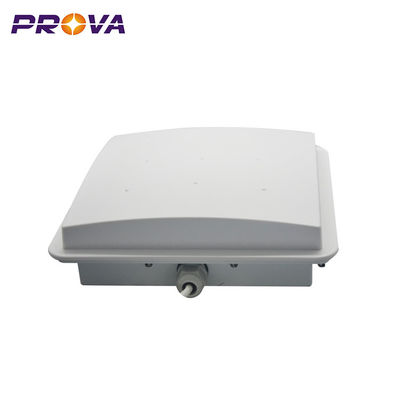

All In One Long Range Passive RFID Reader , 10m UHF RFID Card Reader

Basic Information
Place of Origin: China
Brand Name: PROVA
Certification: CE/FCC
Model Number: PT-RU120
Minimum Order Quantity: 1
Price: by Inquiry
Packaging Details: By box
Delivery Time: 3-30 days according to quantities
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 3000+ units/month
Detail Information
Name: UHF Integrated RFID Reader Frequency: EU 840~868MHz/ US 902~928MHzorcustomized Fixed Or FHSS
Protocol: EPC Global UHF Class 1 Gen 2 / ISO 18000-6C Reading Distance: ≥10m
Writing Distance: ≥4m Interface: ,RS232,RS485,Weigend 26/34 And Trigger
High Light:

long range rfid handheld reader

,

uhf rfid fixed reader


Product Description

Product Name : UHF Integrated RFID Reader / All-in-one UHF RFID Reader



Model: PT-RU120



General Description:

PT-RU120 is a high performance UHF RFID integrated reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces and easy installation.It can be widely appliedin many RFID application systems such as logistics, access control, and anti-counterfeitandindustrialproductionprocesscontrolsystem etc.

Features:

*Adopt low power dissipation, high performance, long distance RFID moduledesign

*Support EPC global Class1 Gen2/ISO 18000-6Cprotocol tag

*840~868MHz/902~928MHz frequency band (frequency customization optional)

*FHSS or Fix Frequency transmission

*RF output power up to30dBm (1dbm step adjustable)

*Built-in 8dbi circular polarized antenna, effective distance over10 m

*Support command, Auto and trigger working mode

*Low power dissipation with single +12V DC power supply

*Support RS232, RS485, Wiegandand Trigger interfaces

*RJ45 (TCP/IP, UDP) andWIFI interface are optional

*Support EPC, TID and USER inventory in independently or conjunctively

*Support IAP firmware upgrading

*Support IE Browser parameter configuration

*Provide Windows & Linux demo software and SDK for testing and furtherly development

Specifications:

Main Function
Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Support tags Normal RFID tags; Temperature sensor or Moisture sensor rfidtag
RSSI testing Support
RFID
Frequency

EU 840~868MHz/ US 902~928MHzorcustomized

Fixed or FHSS

RF output power 30dBm±1dB(MAX)
Step power 1dBm
Channel occupied bandwidth 250KHz
Antenna Built-in 9dBi circular polarized antenna
Tag Reading
Reading distance ≥10m 8dBi circular polarized antenna, 30dBm, standard testing tag
Writing distance 4m
Multiple tag reading speed ≥100pcs/s
Communication Parameter
Interface RS232, RS485, Weigend 26/34 and Trigger
RJ45 and WIFI are optional
Baud rate 115200bps
Power Parameter
Operating Voltage +12.0V
Operating Current 0.7A
Standby Current 100mA
Temperature Parameter
Operating Temperature -20~+55
Storage Temperature -30~+85
Operating Humidity

<95%RH (+25℃) Non-condensing



Application Area:

  • Vehicle management intensively,
  • Staff management for factory,
  • Weight management for warehouse,
  • Access control for warehouse and vehicle,
  • Clothing management,
  • Tobacco logistics management,
  • Intelligent library management,
  • Production line identification management,
  • Financial escorts management,
  • Asset management and other applications.
