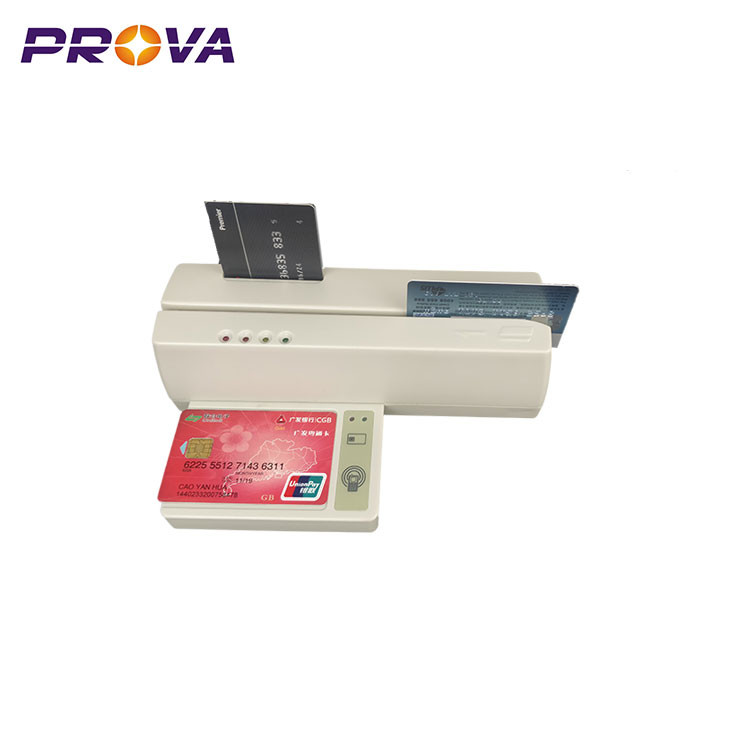

MSR Magnetic Stripe Chip Card Reader With Writer For Financial System

Basic Information
Place of Origin: China
Brand Name: OEM / Customize
Certification: ROHS
Model Number: F2666-IC
Minimum Order Quantity: 1 unit, sample avaliable
Price: By inquiry
Packaging Details: 15 units / Carton , Carton dimension 52x51x30cm @22.5kgs
Delivery Time: 0-4 weeks according to quantities
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000+ units / month
Contact Now
Detail Information
Name: Msr Magnetic Stripe Reader& Contactless IC Card Reader / Encoder Interface: USB (Virtual COM Port Or HID In Option)/RS232
Support Card: Magnetic Card & Contact/Contactless Chip Card Read & Write Color: Gray White
Power Supply: USB: DC 5V , RS232: DC 5V Or 24V Accessories: Data Cable , Power Supply, Power Cable, Cleaning Card
High Light:

msr chip reader writer

,

chip & swipe reader


Product Description

Product Name: MSR magnetic stripe reader and writer/Contactless Chip Card Module - F2666-IC



Model: F2666-IC





General Introduction:

F2666-IC series is designed and produced to meet the needs of the business development of the financial system. It offers a magnetic card reading/writing Solution up to all 3 tracks for ISO7811-6 / AAMVA formats.

It has optional modules to read/write dual interface RF card, RF card and contact CPU card that Support ISO7816, EMV2000 and PBOC2.0 standards. There are also 3 PSAM card holders can be extended.

F2666-IC series Provides a standard RS-232 or USB interface to communicate with a host system or other terminal devices. Can be widely used in finance, social security, industrial and commercial tax, transportation, securities, post and telecommunications and other industries.



Technical Features:

ITEMS SPECIFICATION
Main Technical Feature
Power Supply USB Bus: DC +5V±10% 500mA. , Or External power supply 24V/2.5A
Consumption Current/operating Typical 350mA Max
500mA plus for writing track
Outline 215L*65W*65H mm
Temperature Operation: -10ºC to 60ºC; Storage: -30ºC to 70ºC
Humidity Operation: 10 to 85%; Storage: 10 to 90%, Noncondensing
Magnetic Stripe Technical Feature
Standard ISO7811 / AAMVA / DMV
Interface Mode 1 :RS232 - 9600 Baud, None Parity, 8 bits
Mode 2 :USB-HID - HID specification compliant vendor-defined interface.
Mode 3 :USB-Virtual Serial COM - 9600 Baud, None Parity, 8 bits
Register density 210bpi / 75bpi options for all tracks.
Bit per Char 5~7bit / char
Media Speed 10~100cm/s
Media Coercivity Read: 300~2750oe Mag. Card Write: 300-4000oe Mag. Card
Head Life >500,000 passes for both read & write head
IC Card Technical Feature ( Optional module)
Interface Mode 1 :RS232:9600 Baud, None Parity, 8 bits
Mode 2 :CCID - PC/SC on USB.
Mode 3 :USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits
contact IC
Standard ISO7816 / EMV2000 Level 1 / PBOC 3.0
Card Voltage 5V / 3.3V / 1.8V
Protocol T=0 / T=1

IC Holder



8 contacts, short circuit protection, pressure: 0.4n ± 0.1n. Holder life: > 200,000 times
Communication rate 9600bps~38400bps, support PPS
Contactless IC
Standard ISO14443TYPE-A&B / EMV2000 Level 1 / PBOC 3.0
Protocol T = CL
Frequency 13.56MHz
Effective range 0~5cm
Communication rate 106K/212K/424K bps, support PPS
PSAM
Support Number One for CCID interface mode, Three for others interface mode.
Standard ISO7816 / EMV2000 Level 1 / PBOC 3.0,The physical interface conforms to the GSM11.11 specification
Voltage 3.3V
Protocol T=0 / T=1
Holder 8 contacts, Holder life: > 5,000 times



MSR Magnetic Stripe Chip Card Reader With Writer For Financial SystemMSR Magnetic Stripe Chip Card Reader With Writer For Financial System



Structural Features and Picture:



MSR Magnetic Stripe Chip Card Reader With Writer For Financial System






DIP-switch definition:



SW1 SW2 SW3 SW4 DIP Description
X X X ON Device into ISP slave mode
OFF X X OFF

Magnetic stripe: USB-HID;

Smart IC Card: USB-PC/SC(CCID)

ON X X OFF USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits
