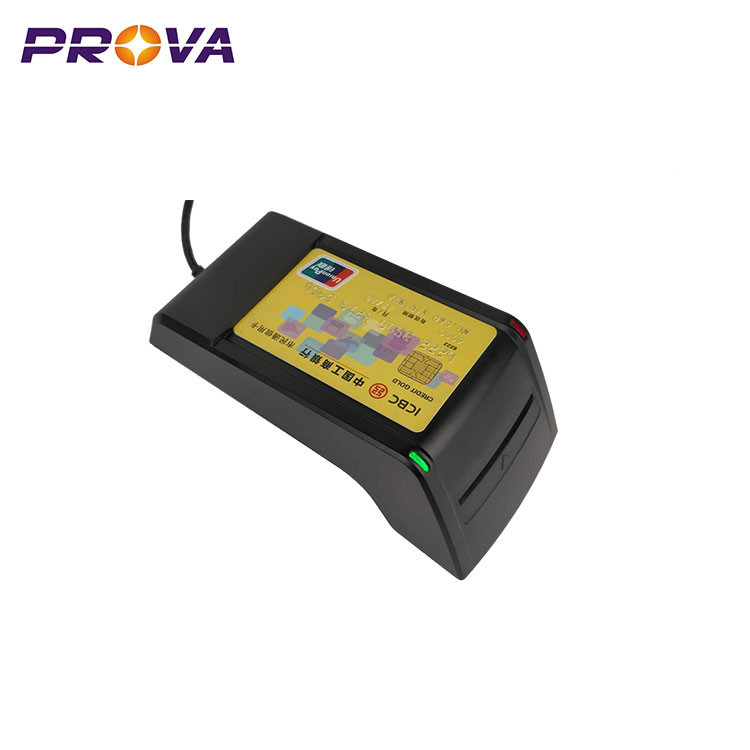

Electronic Commerce RFID Card Reader USB Interface 0.08mm Thickness

Basic Information
Place of Origin: China
Brand Name: PROVA
Certification: Null
Model Number: F3200
Minimum Order Quantity: 1 unit, sample accepted
Price: USD25-USD30
Packaging Details: 50 units / Carton
Delivery Time: 0-4 weeks according to quantities
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3000+ Units / month
Detail Information
Name: IC & RFID Card Reader Function: Contact & Contactless Chip Card Read/Write
Interface: USB (PCSC) / RS232 In Option Color: Black
Feature: Support PCSC Application: Electronic Commerce
High Light:

Electronic Commerce RFID Card Reader

,

USB Interface RFID Card Reader

,

0.76mm Chip Card Reader


Product Description

Product Name: IC & RFID Card reader / Chip & Mifare Card Reader / Smart Card Reader - F3200



Model: F3200 is an ideal multifunctional reader designed for Banking System. It can encode and read data of stripe in the bank passbook and magnetic card. Obtaining read/write parity functions together. According to user requirement the device can integrate with IC card and SAM card module.



Features:

* Read /Write RFID cards , IC card and Sam Card

* USB interface

* Support PCSC

* Long Life time (500,000 times)



Application:

* Access control terminal

* Supermarket payment

* Food transport

* Communication and transportation

* Home-banking

* Retail POS/Banking

* Electronic Commerce

* Identification/Payment

* Anti-fake/Library management



Specification:

Power USB
Power Consumption Work current: Power Consumption Work current: <200 mA
Interface  RS232 or USB HID (PCSC)
Card Specification Width: 53.92~54.18 mm
Length: 85.47~85.90mm
Thickness: 0.76mm ± 0.08 mm
Net Weight Approx. 240g (Excluding accessory and package)
IC card standard ISO7816 standard certified, EMV2000 Level1, PBOC3.0 (WITH CERTIFICATE)
e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1)
RFID card standard ISO14443-3 compliant (TYPE A: e.g. S50,S70,UL etc )
ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus, MifareDesFire, etc)



Working Status:

Electronic Commerce RFID Card Reader USB Interface 0.08mm Thickness 0

Electronic Commerce RFID Card Reader USB Interface 0.08mm Thickness 1

Electronic Commerce RFID Card Reader USB Interface 0.08mm Thickness 2
