Card Issuing Machine / Card Dispenser & Collector for Kiosk Terminal/card reader module - PT-F3 Series

Basic Information
Place of Origin: China
Brand Name: OEM/Customize
Certification: CE/ROHS
Model Number: PT-F3
Minimum Order Quantity: 1 units, sample available
Price: by inquiry
Packaging Details: 2 units /carton
Delivery Time: 3-4 weeks for lots
Payment Terms: T/T, Western Union,paypal
Supply Ability: 1000+ units / month
Detail Information
Name: Card Issuing Machine/card Reader Module Material: Metal & Engineering Plastic Frame
Support Card: Chip Card & RF Card Dispensing And Collecting Interface: RS232
High Light:

rfid card dispenser


smart card dispenser

Product Description

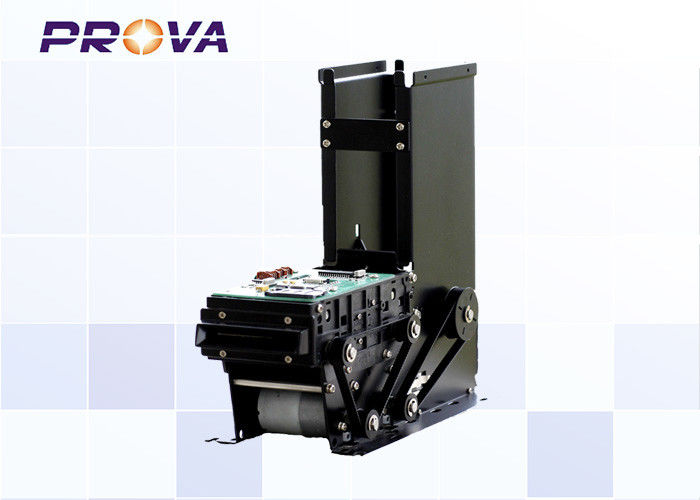

Product :  Card Issuing Machine / Card Dispenser & Collector for Kiosk Terminal


Model: PT-F3


General Description:

PT-F3 card issuing machine can be used to send/sell card ticket automatically, and it is mainly used in systems like parking, motor-way, automatic toll collection, auto card selling, bank card management, etc.



Product Features:

  • Special design on the roller makes it good to dispense embossing card.
  • The dispensing thickness can be adjusted easily and accurately.
  • The structure design is best limited to efficiently save the space needed in installation, with the fulfillment of IC&RF card reading, dispensing and collection function.
  • The rear side extension stacker easies the management on cards.
  • Card collecting channel design makes it available on the needs of huge amounts of cards collection.
  • The usage of several pairs of sensors give signal on card collecting bin full, card empty, card pre-empty, card transmission position, etc, to make it available to check the exact card position and status.
  • The scientific design on card transmission roller can prevent the roller slipping because of the accumulation of dust.
  • The adoption of long-wearing plastic cement in RF card reading part can efficiently better the RF card reading performance.
  • The multistage circuit protection prevents the sensors from disturbed by lights.
  • PC/SC reader for option


Technical Specification:


Contents Specification
Card supported Dimension:55mm~86mm,
Thickness:0.2~1.2 (standard)
Communication RS-232 (to be added)
Working currency DC24V±5% 2.5A

Standard capacity

Of card cassette

Capacity of card collector

Standard card:25PCS

(unlimited card collection design for option)

Dispensing lifetime 1,000,000 passes
Chip contact lifetime 500,000 passes
Working environment temperature/humidity -10℃--60℃/0-90%(No condensing)
Storage environment temperature/humidity -30℃--70℃/0-90%(No condensing)
Net weight About 1600g
Packaging dimension Unit package dimension(mm):495×275×290
Product dimension See attached product dimension picture







































Card Issuing Machine / Card Dispenser & Collector for Kiosk Terminal/card reader module - PT-F3 Series 0






RS-232 interface:

Card Issuing Machine / Card Dispenser & Collector for Kiosk Terminal/card reader module - PT-F3 Series 1
