3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader

Basic Information
Place of Origin: China
Brand Name: Neutral / Customize
Certification: ROHS
Model Number: MICR1250
Minimum Order Quantity: 1 units
Price: $90 - $110 according to requirement
Packaging Details: 15 units / Carton, Dimension 50x33x52cm @ about 22kgs
Delivery Time: 1-4 weeks according to quantities
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000+ units / month
Detail Information
Name: Magnetic Ink Check Reader / MICR Check Reader / Check Reader Supports CMC7 And E13B Font Support: CMC7 / E13B Self Adapt
Interface: USB HID, USB Keyboard, USB Virtual COM, RS232 , PS/2 MSR Module: Optional
Power Supply: 12V/2A Or 5V USB In Option MSR Module: 1/2/3 Tracks MSR Module Optional
High Light:

micr reader device

,

micr code reader


Product Description

Product Name: Magnetic ink Check Reader / MICR Check Reader / Check Reader supports CMC7 and E13B



PRODUCT DESCRIPTION

The MICR1250 multi-functional MICR (Magnetic Ink Character Recognition) reader integrates check reading and magnetic card reading, which is a new generation of financial industry application product developed by our company under the platform of ARM Cortex M1. It has the characteristics of fast recognition, high recognition efficiency and easy to use. This product can be used with computer or terminal equipment, mainly used for the front or back office business of Banks or other financial institutions, to provide the signal reading of magnetic notes and magnetic cards.



Functions and Features:

1. Magnetic check E13B or CMC7 can be read automatically.

2. Can read magnetic cards or pass book wth ISO7811 standard.

3. Communication: Support USB / RS232 / PS2.

     RS232: 8 Data bit / 1 Stop bit / No Parity.

    USB: Support HID keyboard / HID compliant / USB Virtual Serial Port.

4. Three Power Methods in option:

    DC12V±10% ,1000mA;

    DC5V±10% ,1000mA;

    USB BUS power 5V,400mA

5. Life Time

 Magnetic Head: 500,000 times;

 Electric Motor: 6000 Hours;



Model Definition:



MICR1250- U U05 0

(1)    (2) (3)  (4)



(1) Product series



(2) Communication:

U USB
R RS232
P PS/2





(3) Power Supply:

D12 Switching power supply DC 12V/1000mA
D05 Switching power supply DC 5V/1000mA
U05

USB Bus power supply 5V/400mA

P05 PS/2 Bus power supply 5V/400mA



    (4) Magnetic Stripe Reader module

M Support MSR model
0 No MSR model



Structure schematic:

3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader 0

Cables: USB cable as standard, RS232 and PS/2 in option

RS232 Cable:

3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader 1





PS/2 cable :

3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader 2



USB Cable : (USB- Type A to USB- Type B):

3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader 3





Support MICR Characters CMC7 and E13B by self adapt:



E-13B sample codes:

3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader 4

HEX 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D



CMC7 sample codes:

3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader 5

HEX 31 32 33 34 35 36 37 38 39 30 3A 3B 3C 3D 3E





DIP  Switch Settings:

Inside the MICR1250 reader, there is a DIP switch to set interfaces, USB mode and firmware update mode.

SW1 SW2 Communication
ON ON PS/2-AT
ON OFF Virutal COM
OFF ON USB-HID
OFF OFF RS232



SW3 USB-HID SW4 MODE
ON HID compliant ON ISP firmware updat mode
OFF HID Keyboard OFF work mode















Technical Specifications:

Can read the ISO1004 standard E13B or CMC7 font magnetic ink check.

Can read magnetic stripe card or pass book. All 3 tracks.

Compatible with IBM, ISO, ANSI, DIN standards.

Can set ABA1 code, ISO code through the command.

The speed of electromotion is: 46.5cm/s@12V ,  23.56cm/s@5V.

Communication interface can be set to RS232, USB or PS / 2 keyboard mode.

There are three indicators indicating the working status: power supply (P), work (R) and error (E).



Environmental Conditions:

Temperature: 0-40 C°

Humidity: 15%----85%



Physical size (Length x Width x Height):

175mm x 120mm x 70 mm

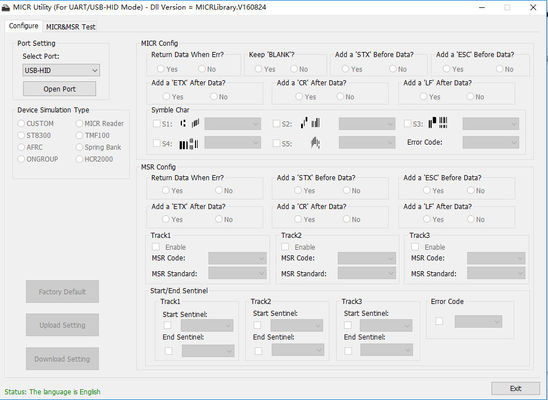

Screen of setting utility:

3 Tracks Smart MICR Check Reader , Easy Using Magnetic Ink Code Reader 6
