| Place of Origin: | China |
|---|---|
| Brand Name: | OEM / Customize |
| Certification: | ROHS |
| Model Number: | F2666-IC |
| Minimum Order Quantity: | 1 unit, sample avaliable |
| Price: | By inquiry |
| Packaging Details: | 15 units / Carton , Carton dimension 52x51x30cm @22.5kgs |
| Delivery Time: | 0-4 weeks according to quantities |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000+ units / month |
| Name: | Magnetic & Chip & Contactless IC Card Reader / Encoder | Interface: | USB (Virtual COM Port Or HID In Option)/RS232 |
|---|---|---|---|
| Support Card: | Magnetic Card & Contact/Contactless Chip Card Read & Write | Color: | Gray White |
| Power Supply: | USB: DC 5V , RS232: DC 5V Or 24V | Accessories: | Data Cable , Power Supply, Power Cable, Cleaning Card |
| High Light: | chip & swipe reader,chip reader and writer |
||

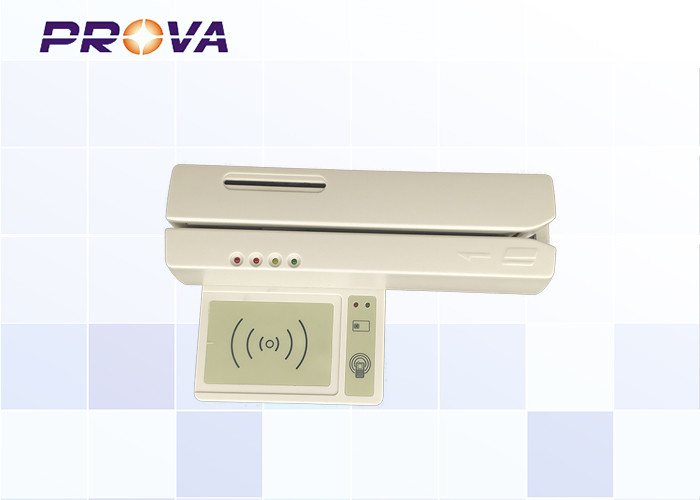

Product Name: Magnetic Card Reader & Encoder with Contact/Contactless Chip Card Module - F2666-IC
Model: F2666-IC
General Introduction:
F2666-IC series is designed and produced to meet the needs of the business development of the financial system. It offers a magnetic card reading/writing Solution up to all 3 tracks for ISO7811-6 / AAMVA formats.
It has optional modules to read/write dual interface RF card, RF card and contact CPU card that Support ISO7816, EMV2000 and PBOC2.0 standards. There are also 3 PSAM card holders can be extended.
F2666-IC series Provides a standard RS-232 or USB interface to communicate with a host system or other terminal devices. Can be widely used in finance, social security, industrial and commercial tax, transportation, securities, post and telecommunications and other industries.
Technical Features:
| ITEMS | SPECIFICATION |
| Main Technical Feature | |
| Power Supply | USB Bus: DC +5V±10% 500mA. , Or External power supply 24V/2.5A |
| Consumption | Current/operating Typical 350mA Max |
| 500mA plus for writing track | |
| Outline | 215L*65W*65H mm |
| Temperature | Operation: -10ºC to 60ºC; Storage: -30ºC to 70ºC |
| Humidity | Operation: 10 to 85%; Storage: 10 to 90%, Noncondensing |
| Magnetic Stripe Technical Feature | |
| Standard | ISO7811 / AAMVA / DMV |
| Interface | Mode 1 :RS232 - 9600 Baud, None Parity, 8 bits |
| Mode 2 :USB-HID - HID specification compliant vendor-defined interface. | |
| Mode 3 :USB-Virtual Serial COM - 9600 Baud, None Parity, 8 bits | |
| Register density | 210bpi / 75bpi options for all tracks. |
| Bit per Char | 5~7bit / char |
| Media Speed | 10~100cm/s |
| Media Coercivity | Read: 300~2750oe Mag. Card Write: 300-4000oe Mag. Card |
| Head Life | >500,000 passes for both read & write head |
| IC Card Technical Feature ( Optional module) | |
| Interface | Mode 1 :RS232:9600 Baud, None Parity, 8 bits |
| Mode 2 :CCID - PC/SC on USB. | |
| Mode 3 :USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits | |
| contact IC | |
| Standard | ISO7816 / EMV2000 Level 1 / PBOC 3.0 |
| Card Voltage | 5V / 3.3V / 1.8V |
| Protocol | T=0 / T=1 |
|
IC Holder
|
8 contacts, short circuit protection, pressure: 0.4n ± 0.1n. Holder life: > 200,000 times |
| Communication rate | 9600bps~38400bps, support PPS |
| Contactless IC | |
| Standard | ISO14443TYPE-A&B / EMV2000 Level 1 / PBOC 3.0 |
| Protocol | T = CL |
| Frequency | 13.56MHz |
| Effective range | 0~5cm |
| Communication rate | 106K/212K/424K bps, support PPS |
| PSAM | |
| Support Number | One for CCID interface mode, Three for others interface mode. |
| Standard | ISO7816 / EMV2000 Level 1 / PBOC 3.0,The physical interface conforms to the GSM11.11 specification |
| Voltage | 3.3V |
| Protocol | T=0 / T=1 |
| Holder | 8 contacts, Holder life: > 5,000 times |
Structural Features and Picture:
DIP-switch definition:
| SW1 | SW2 | SW3 | SW4 | DIP Description |
| X | X | X | ON | Device into ISP slave mode |
| OFF | X | X | OFF |
Magnetic stripe: USB-HID; Smart IC Card: USB-PC/SC(CCID) |
| ON | X | X | OFF | USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits |
