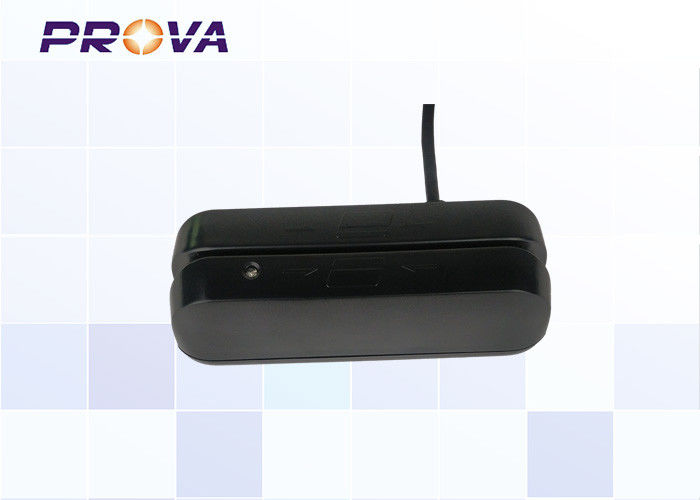

Dual-Heads Magnetic Card reader / Dual-faced Magnetic Card Reader with wide range power supply 5V-24V- F780

Product Name:   Dual-Heads Magnetic Card reader (RS232 interface , with wide range 5V-24V power supply)

Model: F780

Description

F780 Dual face magnetic card reader is developed under 32bit Cortex-M3 platform with working frequency 72MHz. It can read and decode the magnetic card , credit card compatible with ISO7811 standard rapidly and accurately.

F780 works under RS232 interface or USB interface. With the powerful setting utility , users can set the output format flexibly and expediently. F780 can be used in shopping mall , supermarket ,CVS , as well as being set into Kiosk terminals such as ATM, self-service terminals, the wide range power supply is especially suitable to set on cars and trucks.

Technical Features:

• Power supply:DC 5V/±10%
• Power Mode:

1) From RS232 of some terminals

2) From USB port.

3) From external power adapter, can be wide range 5V-24V

• Electric Current:stand by status :≤80mA . Crest value under working:≤100mA
• Interface :RS232
• Magnetic Card reading features:

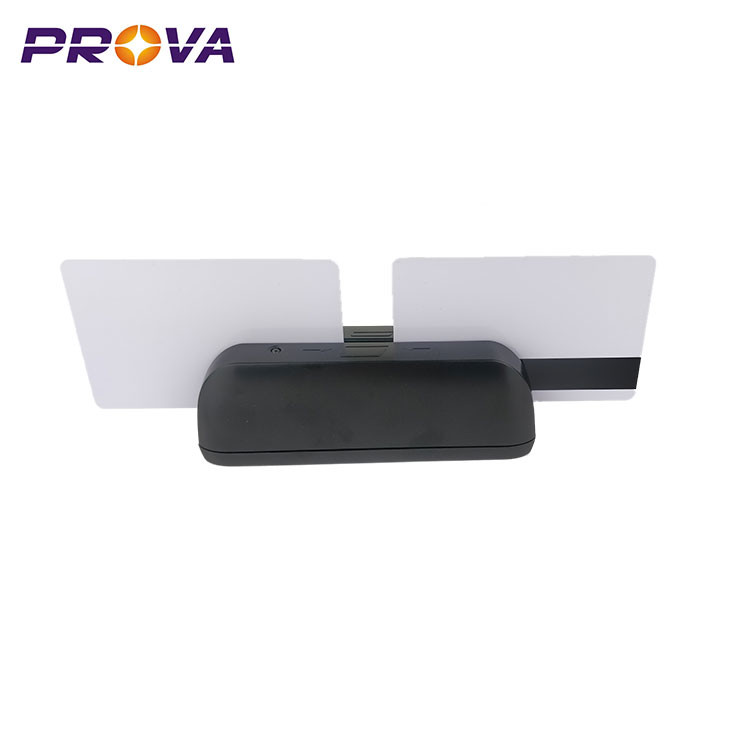

Support dual face swipe with two magnetic heads, support dual direction swipe.

Support ISO/IEC7811/AAMVA standard.

Card swiping speed:10cm/s~120cm/s.

Swiping lifetime: ≥600,000 passes.

• Working Environment:Temperature -10~50℃, Humidity 10%~90%.
• Support USB1.1/USB2.0 standard.
• Dimension(L×W×H):116mm×36 mm×40mm
• Color: Black
• Cable Length: 1.5m

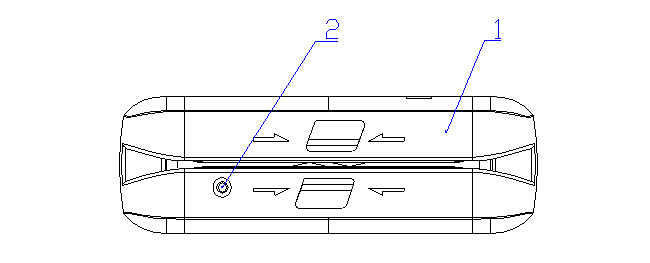

Structure Features:

1. Main housing

2. Status LED (blue and red)

DIP SWITCH Definition:

There is a DIP Switch on the main board. The settings definition is following:

SW3 has no definition.

Setting Utility:
