Place of Origin: | China |
---|---|
Brand Name: | PROVA |
Certification: | Null |
Model Number: | BT980 |
Minimum Order Quantity: | 1 units , sample avaliable |
Price: | by inquiry |
Packaging Details: | By box and outer carton |
Delivery Time: | samples in 1 week, bulk in 1-4 weeks |
Payment Terms: | T/T, Western Union, Paypal, Alipay |
Supply Ability: | 10000+ units / month |
Name: | Long-distance Two-dimensional Code Scanning Platform | Interface Type: | USB, TTL-232, RS232, RS485 |
---|---|---|---|
Scanning Distance: | 10-120cm As Normal, Max 150cm | Dimensions (w X D X H): | 64 Mm × 65 Mm × 28.9 Mm |
Supported Code: | 1D Barcode, 2D QR/DM Code, 2D QR/PDF417 Code | Warranty: | 12 Months |
High Light: | two dimensional code scanner,1d 2d barcode scanner |

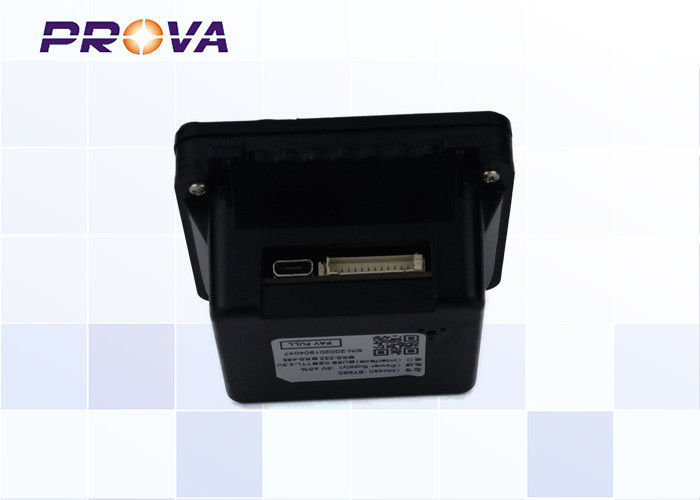

Name: Long-distance Two-dimensional Code Scanning Platform
Model: BT-980
Introduction:
BT980 barcode scanning platform is a long-distance, strong light immunity, high integration, fast response, high stability barcode and two-dimensional code reading product, can read all kinds of mainstream one-dimensional barcodes and mainstream two-dimensional codes.
The BT980 has a long-distance scanning depth of field. Take the mobile QR payment code as an example, it can identify the depth of field: 10-120cm. The clever structure design and superb algorithm make the product still have a good scanning experience in the strong sunlight of 100,000 Lux, whether it is facing the sun direction or the backlight direction. In parking lots and high-speed toll applications, it is possible to support direct scanning without shaking the car window under raining weather.
The BT980 scans paper barcodes when there is plenty of light. Ultra-thin and compact product structure, the total thickness of the product does not exceed 29mm, which can greatly adapt to the extreme requirements of the user.
This product can be used in parking management, payment, industrial, logistics management and other fields.
Features and advantages :
Light environment: excellent scanning code experience under strong light and low light conditions, strong light intensity 100000 lux, low light intensity 0 lux. | |
Scanning code distance and speed: the payment code scan code distance is up to 10-120cm in normal light illumination and angle, and the scanning code speed response is fast, and the single reading code is within 50ms. | |
Environment adaptation: The recognition angle is wide, and the user's hand-held mobile phone has a wide angle of deflection. The rainy day and the window film can still scan the code without shaking the window. | |
Two-dimensional code carrier: support one-dimensional code, two-dimensional code of mobile phone screen in complex environment, support paper barcode and two-dimensional code. Bar code carrier: screen, paper, plastic, etc.(paper, plastic need extra light)
|
|
Hardware structure: ultra-thin and compact product structure, product thickness within 29mm range, with eye-catching three-color light scanning code status reminder. |
Dimensional drawing:
Physical parameter:
Scan head volume (length x width x height): 64 mm × 65 mm × 28.9 mm
Weight: 41.4 g
Image sensor: 100W pixel CMOS
Scan recognition distance: 10-120 cm
Reading mode: hardware trigger / induction / continuous three modes
Reminder light: three-color status reminder light
Scan type: image type
Field of view angle: 36° horizontals, 23° vertical, 55° diagonal
Reading accuracy: 1D code ≥ 6mil QR code ≥ 15mil
(High-density barcode recognition has a short depth of field)
Decoding ability: Interpret standard one-dimensional, two-dimensional barcode
Input voltage: 3.0- 3.6 VDC, 3.8- 1 6 VDC
Working current: 232 mA (peak)
Standby power: 25mA
Host system interface: USB, TTL-232, RS232, RS485
Environmental parameters:
Working temperature: -20 ° C ~ 70 ° C
Storage temperature: -40 ° C ~ 80 ° C
Humidity: 5%~95%, no condensation
Ambient illumination: 0~100,000
