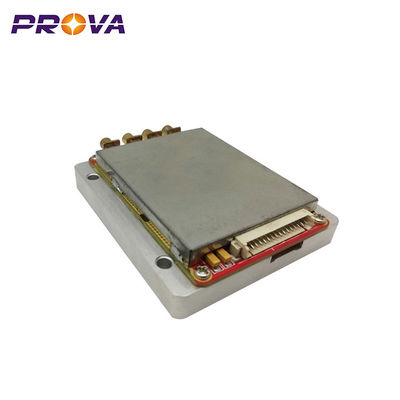

Product Name : UHF RFID Module / EU 840~868MHz, US 902~928MHz UHF RFID Reader Module
Model: PT-MU910B
General Description:
PT-MU910B is a high performance UHF RFID Reader Module, adopting IMPINJ R2000 RFID chip, optimized circuit design and sub-tag access processing algorithms for fast reading and high recognition rate and fast writing, Achieving long-distance reading, high recognition rate and fast write processing capability.It can be widely applied in many RFID application systems such as logistics, access control, attendance system, inventory, anti-counterfeit and industrial production process control system etc.
Features:
* adopt IMPINJ R2000 RFID chip
* Support EU 840~868MHz, US 902~928MHz working frequency (or Customized ).
*Support EPC global UHF class 1 gen2 / ISO18000-6Cprotocol RFID tags.
*Support temperature sensor RFID tag, moisture Sensor RFIDtag and some other sensor RFIDtags.
*Optimized multiple tags inventory algorithm,speed is more than 200 per second
*Effective distance more than 40m with 12dBi linear polarized antenna and E41 tag.
*Support 4 external antennas with MCX
*SupportRS232(3.3V TTL level)
* lowerdissipation design, single +5V power supply
*Providefree Windows , Linux & Android DEMO software and SDK for testing and furtherly development.
*Support UART (3.3V TTL level) interface.
*Support IAP firmware upgrading.
*Provide free DEMO software and SDK for testing and furtherly development.
Specifications:
| Main Function |
| Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Support tags |
Normal RFID tag;
Temperature sensor RFID tag; Moisture sensor RFID tag
|
| RSSI |
Support |
| RFID |
| Frequency |
840~960MHz at option; Fixed or FHSS |
| RF output power |
30dBm±1dB(MAX) |
| Step power |
1dBm |
| Signal width |
＜250KHz |
| Antenna port |
4 ports MCX |
| Tag Reading |
| Reading distance |
≥30m |
12dBi linear polarized antenna, 30dBm, standard testing tag |
| Writing distance |
≥8m |
| Multiple tag reading speed |
≥200pcs/s |
| Communication Parameter |
| Interface |
+3.3V TTL UART RS232 |
| 4 ports GPIO (+3.3V TTL Level) |
| 1 port RS485 |
| 1 port tag access output indication |
| Baud rate |
115200bps |
| Power Parameter |
| Operating Voltage |
+5.0V (+3.7V~+5.5V) |
| Operating Current |
≤1.0A / 5V |
| Standby Current |
≤50mA / 5V |
| Temperature Parameter |
| Operating Temperature |
-20~+65℃ |
| Storage Temperature |
-30~+85℃ |
| Operating Humidity |
<95%RH (+25℃) Non-condensing |
Application Area:
- Vehicle management intensively,
- Staff management for factory,
- Weight management for warehouse,
- Access control for warehouse and vehicle,
- Clothing management,
- Tobacco logistics management,
- Intelligent library management,
- Production line identification management,
- Financial escorts management,
- Asset management and other applications.
