| Place of Origin: | China |
|---|---|
| Brand Name: | PROVA |
| Certification: | CE / ROHS |
| Model Number: | PT-9200 |
| Minimum Order Quantity: | 1 unit |
| Price: | By inquiry |
| Packaging Details: | 12 units / carton , Carton Weight @ 18kgs |
| Delivery Time: | 0-4 weeks according to Quantities |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 2000+ units/month |
| Product Name:: | 110mm Width Desktop Thermal Label Printer | Print Method: | Thermal Printing |
|---|---|---|---|
| Paper Width: | 110mm | Interface: | USB |
| Color: | White | Power Supply: | 24V/2.5A External Power |
| High Light: | portable thermal printer,thermal printing machine |
||

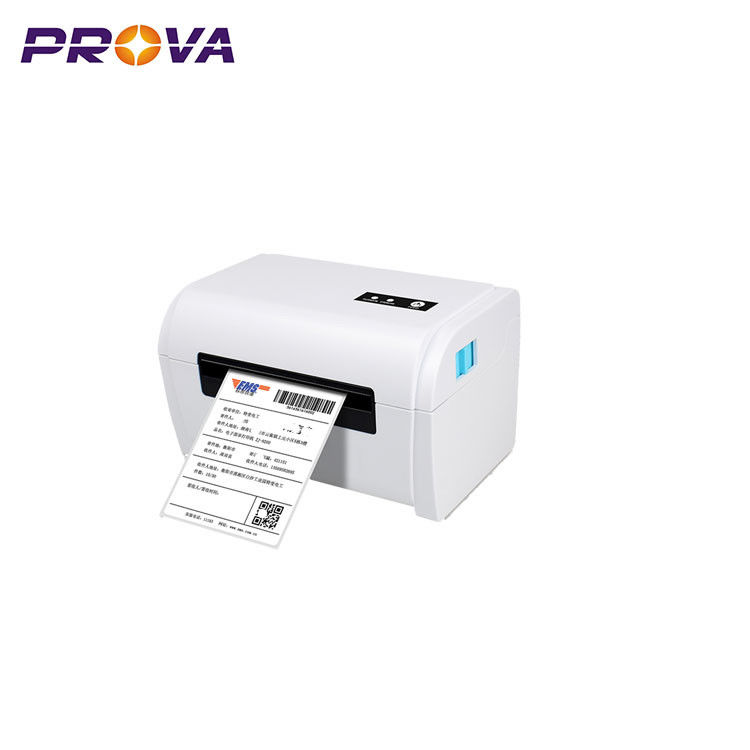

Name: 110mm thermal address label printer / thermal label printing machine PT-9200
Model: PT-9200
Basic Features:
1. No paper warehouse design, no ribbon.
2. External paper holder, can hold both paper roll and stack.
3. Dual-wall frame, robust and sturdy structure.
4. TPH special designed outer cover , suitable for large volume printing.
5. CPCL and TSPL programming language.
| Specificaion | |
| Interfaces | USB / LAN / Bluetooth |
| Print Comand | CPCL / TSPL command (ESC/POS command) |
| Print Method | Direct Line Thermal |
| Pirnt Speed | Pirnt Speed |
| Resolution | 203DPI (8dot/mm) |
| Inner Code | Supported 11 types font size |
| Print parameters | Support to download the Logo trademark |
| Media Sensor | Dual-media sensors: transmissive and reflective |
| One-dimensional code | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 |
| Two-dimensional code | QR Code, PDF417 |
| Printer Driver | Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android |
| Paper | |
| Thermal Paper Types | continuous paper, label paper, folded paper, tag paper |
| Effective Print Width | 100mm (Max 800 points) |
| Available Max Paper Width | 110 ± 0.5mm |
| Paper Thickness | 0.06-0.30 mm |
| Electrical | |
| Charging Method | external charger DC 24V/2.5A |
| Print Head | Reliability |
| Print Reliability | 100000000 pulse / dot or 50km |
| Physical | |
| Printer Dimension | 180*115*107mm |
| Unit Weight | 1.50kgs (with accessories) |
| Pieces Per CTN | 12 Pieces |
| Printer Color | White |
| CTN Dimension | 40 x 37.5 x 40 cm |
| Gross Weight | 18kgs |
| Environmental | |
| Operating Temperature | +0 ℃ ~ 50 ℃ (no condensation allowed) |
| Working Humidity | 20% ~ 85% RH (no condensation allowed) |
| Storage Temperature | -20 ℃ ~ 60 ℃ (no condensation allowed) |
| Storage Humidity | 5% ~ 95% RH (no condensation allowed) |
| Mechanical Noise | less than 60dB (A weighted RMS) |
External paper holder for paper roll :
External paper holder for paper stack :
