Place of Origin: | China |
---|---|
Brand Name: | PROVA |
Certification: | Null |
Model Number: | F3200 |
Minimum Order Quantity: | 1 unit, sample accepted |
Price: | USD25-USD30 |
Packaging Details: | 50 units / Carton |
Delivery Time: | 0-4 weeks according to quantities |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 3000+ Units / month |
Name: | Contact & Contactless Chip Card Reader | Function: | Contact & Contactless Chip Card Read/Write |
---|---|---|---|
Interface: | USB HID (PCSC) | Color: | Black |
IC Card Standard: | ISO7816 | RFID Card Standard: | ISO14443-3 |
High Light: | ISO7816 Chip Card Reader,HID Interface Contactless Chip Card Reader,USB Interface Contactless Chip Card Reader |

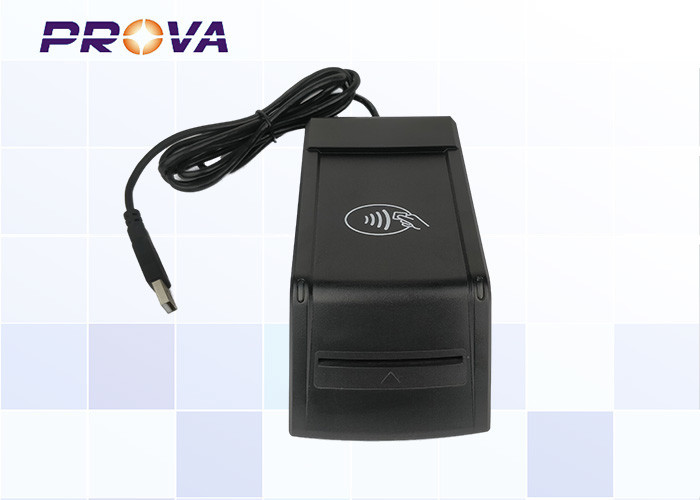

Contact & Contactless Chip Card Reader With USB HID (PCSC) Interface
Product Name: Contact & Contactless Chip Card reader / PCSC IC Card Reader / Multi-functional Card Reader F3200
Model: F3200
Features:
* Read /Write RFID cards , IC card and Sam Card
* USB interface
* Support PCSC
* Long Life time (500,000 times)
Specification:
Power | USB |
Power Consumption | Work current: Power Consumption Work current: <200 mA |
Interface | USB HID (PCSC) |
Card Specification | Width: 53.92~54.18 mm Length: 85.47~85.90mm Thickness: 0.76mm ± 0.08 mm |
Net Weight | Approx. 240g (Excluding accessory and package) |
IC card standard | ISO7816 standard certified, EMV2000 Level1, PBOC3.0 (WITH CERTIFICATE) e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1) |
RFID card standard | ISO14443-3 compliant (TYPE A: e.g. S50,S70,UL etc ) ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus, MifareDesFire, etc) |
Application Of Chip Card Reader
* Access control terminal
* Supermarket payment
* Food transport
* Communication and transportation
* Home-banking
* Retail POS/Banking
* Electronic Commerce
* Identification/Payment
* Anti-fake/Library management
Advantage Of Chip Card Reader
1. Support 2D/1D barcode and support screen and paper barcode
2. 1GHz 32 bits CPU,high speed for data processing.
3. Temperature resistance can reach 105℃,long service life.
4. Small size, powerful and easy to integrate in industrial equipment.
5. It supports 2nd development,multiple development language,also SDK.
6. Highly cost-effective,highly sales volume.
7. We can offer the FFC flat cable for free and 12pin connector if client needed.
Working Status:
