| Name: | Manual Insert Card Reader For Kiosk Terminal , Support Chip Card/RF Card/Magnetic Card | Material: | Metal Frame, Metal Bezel |
|---|---|---|---|
| Support Card: | Magnetic Card Read, Chip Card & RF Card Read/write | Interface: | USB & RS232 |
| High Light: | insert card reader,kiosk credit card reader |
||
Product :

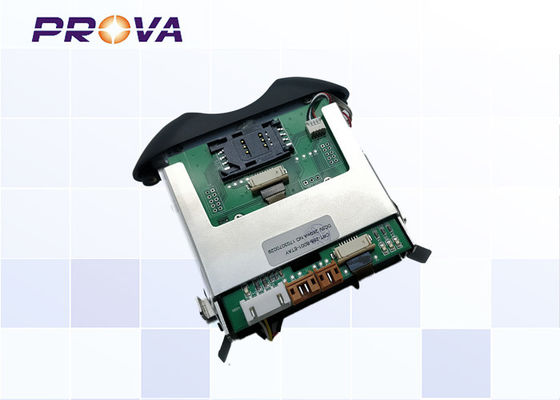

Manual Insert Card Reader for Kiosk Terminal , Support Chip Card/RF Card/Magnetic Card
Model: PT-288-B001-ETAY
Main Features:
PT-288-B is a type of manual insert card reader with contact IC and contactless RF card.
1) with RF card,IC card R&W function,cards confirm relevant criterions,refer to specification.
2)simultaneously with RS232 and USB interface.
① PT-288-B001 automatically scans communication port as serial port,recognizes USB
interface only powered by USB. As connects to PC by USB,D6 green lamp light,D5 green
lamp glitters for a while then extinct,means USB connecting success( HID user defined
device driver free for WINXP and above)
② When PT-288-B001 is power by RS-232,it will automatically select RS232 port,
4PIN power cable and 232 serial port cable,D5,D6 green lamp light.
③ What kind of interface communication is select by using what kind of interface power
supply is available at the moment of switching on.
3)operation life time: 500,000 cycles
4) support PSAM card extension.
5) support on-line IAP renew firmware(realize remote upgrading).
Technical Specification:
| Item | Description |
| Power Input | DC 5V ±5% , USB power supply |
| Power consumption | Static Current: 50 mA , Peak Current: 200 mA |
| Interface | RS-232 ; USB 2.0 interface |
| Card Dimension | Width:53.92～54.18 mm,Length:85.47～85.90 mm Thickness: 0.76～1mm(Ex-work 0.76mm) |
| Life Time | Dip Switch: 500,000 times Min IC Contact:300,000 times Min |
| Error Rate | IC Card :1/1000 times Notes:Standard IC cards |
| MTBF | More than 100,000 hours(Only electronic part) Notes:250 times/day,25day/Month,300 hours/Month |
| Environment | Operation: 0℃～50℃, 0～90 % RH ( Non-condensing ) Storage: -25℃～80℃, 0～95 % RH ( Non-condensing ) |
| Reliability | A. Vibration: No defect in all items of the characters under normal condition after exposed 15min.each on X, Y and Z directions of 2mm amplitude, from 10 to 50Hz/min vibrate. B. Shock: No defect in all items of the characteristics under normal condition after shocked one time on X, Y and Z directions of 294M/s2, 11ms peak acceleration shock. |
| Firmware Download | IAP |
| Net weight | Approx 0.2 Kg(Exclude package) |
Maintenance:
After long time usage, transportation mechanism would wear and tear, dust on sensor,, IC card contact
will influence the performance of module, so it should be maintained on a constant basis.
Detail instruction is as following:
Insert a cleaning card with alcohol and execute auto test IC card several times to clean IC card
contact.
Periodic maintenance: Maintaining the module ( IC contact, Mechanism) every 20,000 cycle is
recommended.
( One cycle: card in and card out )
IC card contact maintenance: Insert an IC card with alcohol; execute auto test IC card.
Cautions:
1. Make sure power is disconnected before maintenance to prevent the device from damage.
2. Oil will dramatically influence card reader’s performance, please keep the device from oil absorbent
adhesive.
3. IC card insertions direction: when cards is inserted from the front,IC chip faces up,the end with IC
chip
4. Magnetic card insertion direction: Magnetic stripe face down and keep it to the right
