| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/Customize |
| Certification: | CE/ROHS |
| Model Number: | PT-310-N |
| Minimum Order Quantity: | 1 units, sample available |
| Price: | by inquiry |
| Packaging Details: | 12 units /carton |
| Delivery Time: | 3-4 weeks for lots |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000+ units / month |
| Name: | Motor Card Reader / ATM Card Reader | Material: | Metal & Engineering Plastic Frame |
|---|---|---|---|
| Support Card: | Chip Card & RF Card Read/Write, Magnetic Card Read Only | Interface: | RS232 |
| High Light: | insert card reader,kiosk credit card reader |
||

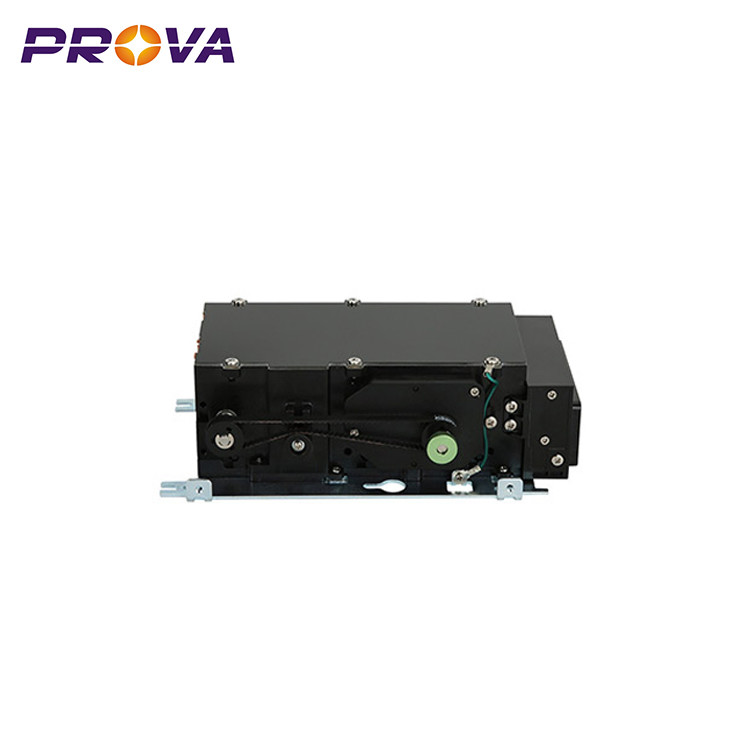

Product : Motor Card Reader / ATM Card Reader for Kiosk Terminal , ATM Machine
Model: PT-310-N
General Description:
PT-310-N is motorized card reader with small-size controllable electric shutter,supports RFID/IC card read/write, magnetic stripe card read only and PSAM board for option.It is widly used in payment systems,traffic control systems etc.
Motorized card reader, EMV card reader PT-310-N with below main features:
- Three in one: RFID/IC card read/write, magnetic stripe card read only Electric shutter,
- Auto insert/eject card from the front, Insert and eject the card from both the front and the rear side
- RS232 interface
- DC12V ±5%
- Installation dimension and bezel dimension is fully compatible with 3K7
- Clearance of abnormal card
- Fault tolerance processing is the same as some other brands
- Small-size controllable electric shutter
- Support warped card mechanism design
- Power-fail protection
- PSAM board for option
Motorized card reader,EMV card reader PT-310-N product specification:
| Magnetic stripe | ISO7810 ID-1,ISO7811 |
| Contact smart card | ISO7816-2 |
| Contactless smart card (optional) | ISO14443 TYPE A & B |
| Interface | RS232 interface |
| Power | DC12V±5% |
| Life time |
Magnetic head: 600,000 passes IC card contact:300,000 passes Motor: 1,000,000 passes |
| Environment conditions |
Operation:0~50℃/0 ~ 90% RH(Non condensing) Storage:-25~70℃/0 ~ 90% RH(Non condensing) |
| Dimension | 96.5x167x51.5mm |
Applications
- Kiosk terminals
- Payment systems
- Traffic control systems
- ATM
