| Place of Origin: | China |
|---|---|
| Brand Name: | PROVA |
| Certification: | CE/FCC |
| Model Number: | PT-RU410 |
| Minimum Order Quantity: | 1 |
| Price: | by Inquiry |
| Packaging Details: | By box |
| Delivery Time: | 3-30 days according to quantities |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3000+ units/month |
| Name: | UHF RFID Fixed Reader | Frequency: | EU 840~868MHz Or FHSS |
|---|---|---|---|
| Protocol: | EPC Global UHF Class 1 Gen 2 / ISO 18000-6C | Reading Distance: | ≥40m |
| Writing Distance: | ≥7m | Interface: | RS232, RJ45 (TCP/IP,UDP), WIFI, Weigend 26 /34 And Trigger, Bluetooth Or 4G In Option |
| High Light: | RJ45 UHF RFID Fixed Reader,868MHz UHF RFID Fixed Reader,FHSS UHF RFID Reader |
||

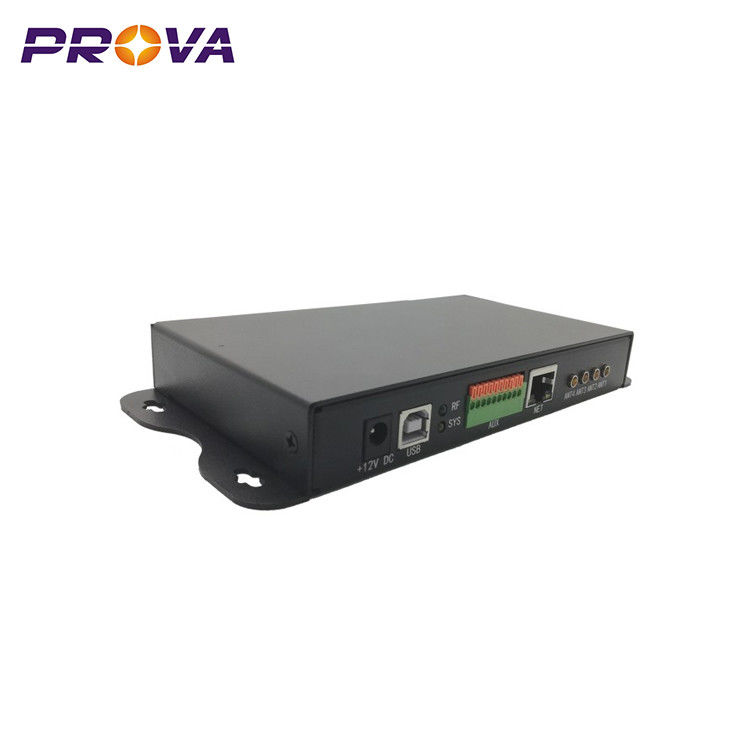

Product Name : UHF Fixed RFID Reader / EU 840~868MHz US 902~928MHz Frequency Band RFID Reader
Model: PT-RU410
General Description:
PT-RU410 is a high performance UHF RFID fixed reader. Adopt IMPINJ R2000 RFID chip, optimized circuit design and sub-tag access processing algorithms for fast reading and high recognition rate and fast writing, Achieving long-distance reading, high recognition rate and fast write processing capability.
It can be widely applied in many RFID application systems such as logistics, inventory checking, vehicle / asset / person Management ,Medical systems, Cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control applications.
Features:
* Adopt IMPINJ R2000 RFID chip
* Support EPC global Class1 Gen2/ISO 18000-6C protocol tag
* 840~868MHz/902~928MHz frequency band (customization optional)
* Support RS232, RS485, USB, RJ45 (TCP/IP, UDP), Weigend 26/34 and WiFi ,USB, trigger ;
* 4G or Bluetooth are optional
* Support EPC, TID,USER separate inventory or simultaneous inventory
* Support IAP firmware upgrading
* Support IE configuration
Specifications:
| Main Function | ||
| Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C | |
| Support tags |
Normal rfid tag; Temperature sensor rfidtag; Moisture sensor rfidtag |
|
| RSSI | Support | |
| RFID | ||
| Frequency | 840~960MHz at option; Fixed or FHSS | |
| RF output power | 30dBm±1dB(MAX) | |
| Step power | 1dBm | |
| Signal width | ＜250KHz | |
| Antenna port | 4 TNCor N | |
| Tag Reading | ||
| Reading distance | ≥40m | 10dBi vertical polarized antenna, 30dBm, standard testing tag |
| Writing distance | ≥7m | |
| Multiple tag reading speed | ≥100pcs/s | |
| Communication Parameter | ||
| Interface | RS232, RS485, USB, RJ45 (TCP/IP,UDP), WIFI, Weigend 26 /34 and Trigger | |
| Bluetooth at option | ||
| 4G at option | ||
| Baud rate | 115200bps | |
| Power Parameter | ||
| Operating Voltage | DC 12.0V(+9.0V~+24.0V Voltage Range) | |
| Operating Current | ≤1.2A / DC 12V | |
| Standby Current | ≤0.1A / DC 12V | |
| Temperature Parameter | ||
| Operating Temperature | -20~+55℃ | |
| Storage Temperature | -30~+85℃ | |
| Operating Humidity | <95%RH (+25℃) Non-condensing | |
Application Area:
