|Place of Origin:||China|
|Minimum Order Quantity:||1 unit, sample accepted|
|Packaging Details:||50 units / Carton|
|Delivery Time:||0-4 weeks according to quantities|
|Payment Terms:||T/T, Western Union,Paypal|
|Supply Ability:||3000+ Units / month|
|Name:||IC & RFID Card Reader||Function:||Contact & Contactless Chip Card Read/Write|
|Interface:||USB (PCSC) / RS232 In Option||Color:||Black|
|Long Life Time:||500,000 Times||Application:||Access Control Terminal|
RS232 IC Card Reader,
PCSC IC Card Reader,
54.18mm Chip Card Reader

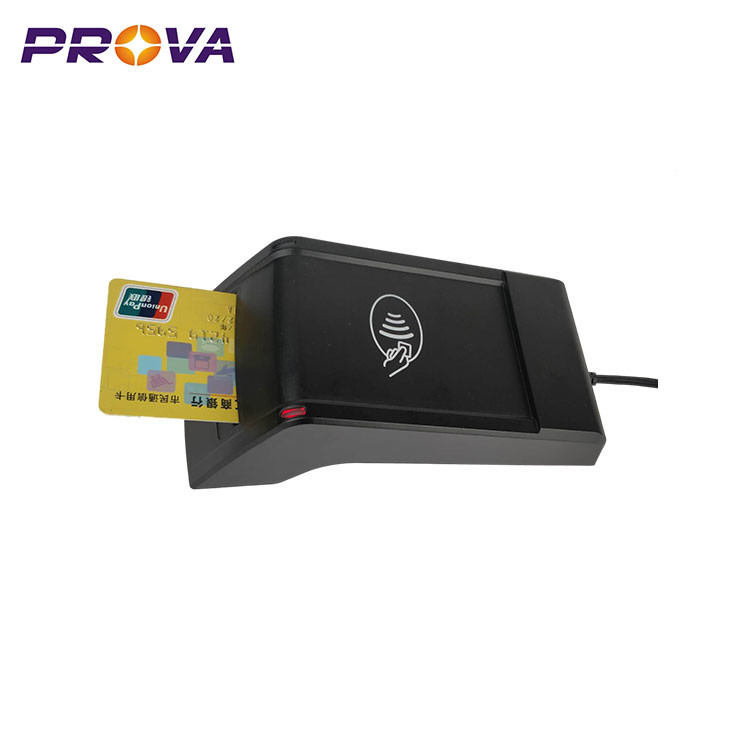

Product Name: IC & RFID Card reader / Chip & Mifare Card Reader / Smart Card Reader - F3200
* Read /Write RFID cards , IC card and Sam Card
* USB interface
* Support PCSC
* Long Life time (500,000 times)
* Access control terminal
* Supermarket payment
* Food transport
* Communication and transportation
* Retail POS/Banking
|Power Consumption||Work current: Power Consumption Work current: <200 mA|
|Interface||RS232 or USB HID (PCSC)|
|Card Specification||Width: 53.92～54.18 mm
Thickness: 0.76mm ± 0.08 mm
|Net Weight||Approx. 240g (Excluding accessory and package)|
|IC card standard||ISO7816 standard certified, EMV2000 Level1, PBOC3.0 (WITH CERTIFICATE)
e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1)
|RFID card standard||ISO14443-3 compliant (TYPE A: e.g. S50,S70,UL etc )
ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus, MifareDesFire, etc)
Advantage Of Chip Card Reader
1. Support 2D/1D barcode and support screen and paper barcode
2. 1GHz 32 bits CPU,high speed for data processing.
3. Temperature resistance can reach 105℃,long service life.
4. Small size, powerful and easy to integrate in industrial equipment.
5. It supports 2nd development,multiple development language,also SDK.
6. Highly cost-effective,highly sales volume.
7. We can offer the FFC flat cable for free and 12pin connector if client needed.
8. We can offer test board and USB cable for sample testing.
1. Why choose us?
* Passionate, experienced and highly-educated R & D and sales team;
* Reasonable price and reliable products, skillful and careful assembly;
* Strict quality assurance and quick aftersales service;
* Lifetime technical support, can come with customized setting.
2. Are OEM and ODM available?
* Yes, they are. As a professional Chip Card Reader manufacturer, we offer OEM and ODM service.
3. How about your product warranty?
* We offer one-year warranty upon delivery.
