User Friendly MSR Magnetic Card Reader Excellent Reading For Pos Machine

Basic Information
Place of Origin: China
Brand Name: PROVA
Certification: Null
Model Number: F790
Minimum Order Quantity: 1 unit, sample accepted
Price: USD25-USD30
Packaging Details: 50 units / Carton,11.5kgs/carton
Delivery Time: 0-4 weeks according to quantities
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3000+ Units / month
Detail Information
Name: Magnetic & Chip Card Reader Function: Read Magnetic Card, Read/Write IC Chip Card
Interface: USB / RS232 In Option Color: Black
High Light:

msr magnetic stripe reader


msr chip card reader writer

Product Description

Product Name: Magnetic & Chip Card reader / Magnetic & IC Card Reader / Multi-functional Card Reader F790

Model: F790


Product Description

F790 is a multi-functional card reader that supports magnetic card , contact & contactless IC card. It was developed under ARM Cortex M1 platform , can read cards fast with high efficiency and easy to use.

F790 is compliant with the standards of ISO/IEC7811 , ISO/IEC7816 , ISO/IEC14443 and the standards of EMV2000 , PBOC2.0. It works with PC or terminals for POS , banks and other financing institutions to operate magnetic cards , contact chip cards , and also contactless IC cards in option.


Technical Features:


Magnetic Card Module

Standard : ISO/IEC7811 , AAMVA

Swiping Speed : 10cm/s ~ 120cm/s

Times of Swiping : >600,000 swipes

Standard of Magnetic stripe data : Compatible with IBM / ISO / AAMVA

Density of encoded data : Track 2 75BPI / 210BPI , Track 3 210BPI


Contact Chip Card Module

Supported Cards Types : Logic encrypt card and CPU cards that follows the standard of ISO/IEC7816

T=0, T=1 CPU chip cards that follows the standard of EMV2000, PBOC2.0

Volt of power supply to chip card : 5V/3V/1.8V, Electric current < 50mA

Baud Rate : 9600bps~38400bps

Contactors of chip card : 8 contactors , supports short-circuit protection , contact force 0.4N±0.1N

Life of contactors : >200,000 plugs


·Contactless Card Module ( in option)

Supported Card Types : Contactless cards that follows ISO/IEC14443 type A&B, and CPU cards

Contactless IC cards that follows the standard PBOC2.0, Biface cards

Communication Protocol : T =CL

Working Frequency : 13.56 MHz

Speed Rate : 106K / 212K / 424K bps, support PPS

Working Distance : 0cm~3cm


Interface : RS232 or USB

RS232 : baud rate 9600/115200 bps, (9600/115200, 8, None, 1)

USB : Chip card is CCID (USB-PC/SC) mode, magnetic card supports HID keyboard mode &

HID compatible mode


Power supply:

RS232 : External power supply can support DC 5V~24V ±10% ,100mA , 24V is optional for special field.

Powered by USB 5V , 100mA.


Working environment:

Temperature : 0°C~50℃ ,Humidity :15%~85%


Dimension ( L x W x H):

116 mm x 36 mm x 38.4 mm

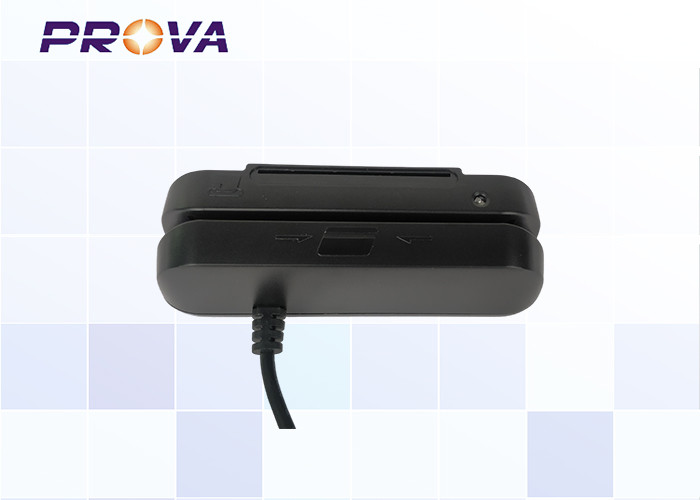

User Friendly MSR Magnetic Card Reader Excellent Reading For Pos Machine 0


Structure Features:

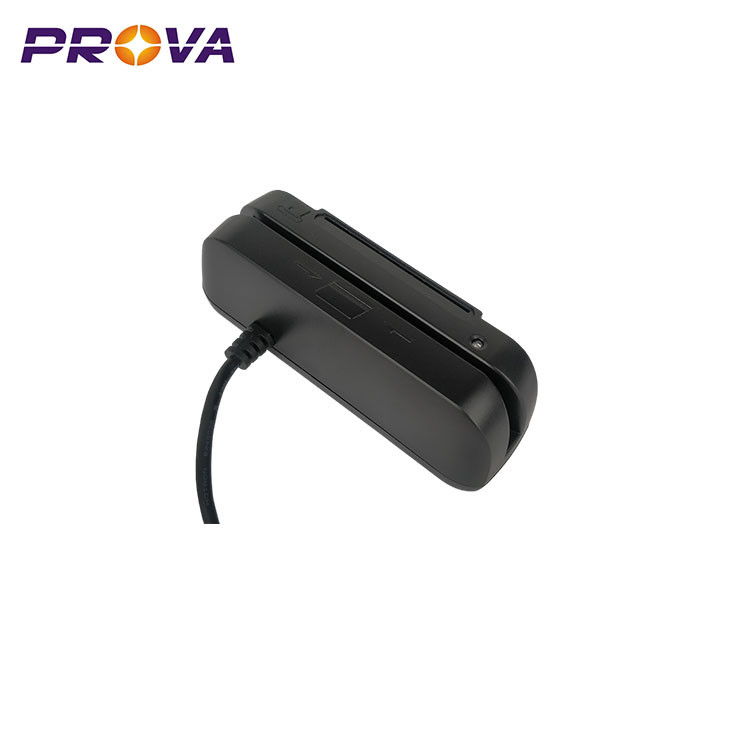

User Friendly MSR Magnetic Card Reader Excellent Reading For Pos Machine 1


Setting Utility for Chip Card:


User Friendly MSR Magnetic Card Reader Excellent Reading For Pos Machine 2
