DC 5V USB MSR Magnetic Card Reader Support USB 1.1 / USB 2.0 Standard

Basic Information
Place of Origin: China
Brand Name: PROVA
Certification: Null
Model Number: F770
Minimum Order Quantity: 1 unit, sample accepted
Price: USD15
Packaging Details: 50 units / Carton,11.5kgs/carton
Delivery Time: 0-4 weeks according to quantities
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3000+ Units / month
Detail Information
Name: Magnetic Card Reader Function: Read Magnetic Card 1/2/3 Tracks
Interface: USB (Keyboard Or HID Mode) Color: Black
High Light:

msr magnetic stripe reader

,

magnetic swipe card reader


Product Description

Product Name:  USB Magnetic Card reader / Magnetic Slot Card Reader / Magnetic Stripe Reader F770

Model: F770DC 5V USB MSR Magnetic Card Reader Support USB 1.1 / USB 2.0 Standard 0DC 5V USB MSR Magnetic Card Reader Support USB 1.1 / USB 2.0 Standard 1



Description

F770 magnetic card reader is developed under 32bit Cortex-M3 platform with working frequency 72MHz. It can read and decode the magnetic card , credit card compatible with ISO7811 ,AAMVA standard rapidly and accurately.

F770 works under RS232 interface or USB interface. With the powerful setting utility, users can set the output format flexibly and expediently. F770 can be used in shopping mall, supermarket, GPS, CVS, as well as being set into Kiosk terminals such as ATM, self-service terminals.



Technical Features:

  • Power supply:DC 5V/±10%
  • Power Mode: From USB port.
  • Electric Current:stand by status : ≤80mA . Crest value under working:≤100mA
  • Interface : USB
  • USB mode: USB Keyboard / USB HID mode set by setting utility,
  • USB virtual COM port set by DIP switch
  • Magnetic Card reading features:
Track Track 1 Track 2 Track 3
Recording density 210 BPI 75 BPI 210 BPI
Capacity

79 characters

(7 bit code)

40 characters

(5 bit code)

107 characters

(5 bit code)

support dual direction swipe.

Support ISO/IEC7811 standard.

Support AAMVA standard.

Card swiping speed:10cm/s~120cm/s.

Swiping lifetime: ≥600,000 passes.

Operation responded by LED and buzzer.

  • Working Environment:Temperature -10~50℃, Humidity 10%~90%.
  • Support USB1.1/USB2.0 standard.
  • Dimension(L×W×H):102mm×36 mm×36.7mm
  • Color: Black
  • Cable Length: 1.5m

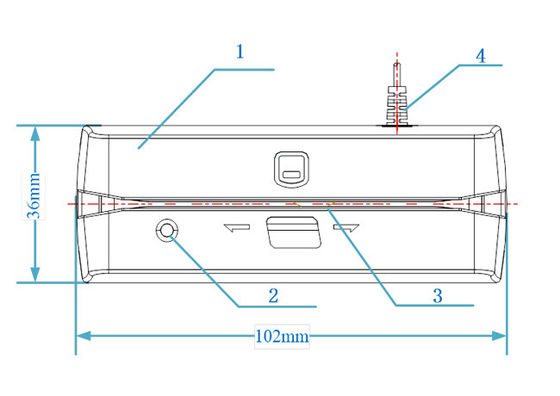

Structure Features:

DC 5V USB MSR Magnetic Card Reader Support USB 1.1 / USB 2.0 Standard 2

1. Main housing

2. Status LED (blue and red)

3. Swiping slot.

4. Communication cable.





DIP SWITCH Definition:

There is a DIP Switch on the main board. The settings definition is following:



SW1 SW2 Interface Mode
ON ON USB Virtual COM Port
ON OFF USB HID Mode
OFF ON RS232 Mode (115200,8,N,1)
OFF OFF RS232 Mode (9600,8,N,1)



SW4 Status
ON F/W updating mode
OFF Working mode



SW3 has no definition.





Setting Utility:



DC 5V USB MSR Magnetic Card Reader Support USB 1.1 / USB 2.0 Standard 3
